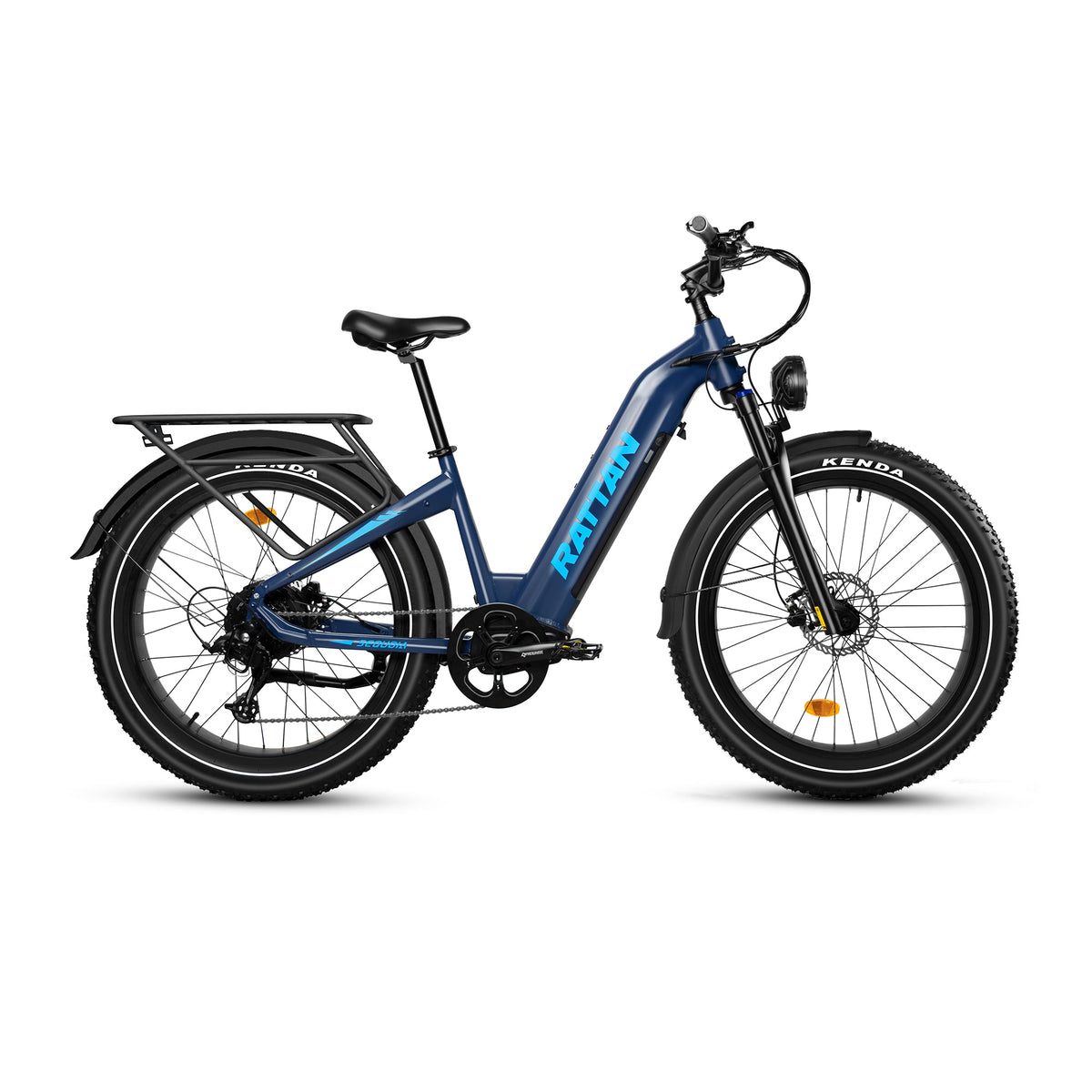

The Rattan Sequoia is the brand’s long-range, torque-sensor fat-tire platform for riders who want a more natural pedal feel without giving up serious motor output. It combines a 750W sustained / 1500W peak rear hub motor, 80 Nm of torque, a 960Wh Samsung-cell battery and 26 x 4 in. tires in a step-through frame built for mixed terrain.
Choose the Sequoia if your priority is all-terrain versatility with a natural-feeling torque sensor. It is a particularly strong candidate for hunting access, camping, gravel routes, trail-to-road riding, heavier riders and long recreational trips where a conventional cadence-sensor fat bike can feel too abrupt.
| Motor | 750W sustained brushless rear hub; up to 1500W peak |
|---|---|
| Maximum torque | 80 Nm |
| Battery | 48V 20Ah / 960Wh removable Samsung-cell lithium-ion |
| Claimed range | Up to 80 miles with the standard battery; optional second-battery configurations can extend range |
| Top speed | Up to 28 mph |
| Sensor | Torque sensor |
| Ride modes / assist | 3 riding modes / 5 pedal-assist levels |
| Throttle | Thumb throttle |
| Drivetrain | Shimano 8-speed |
| Brakes | Hydraulic disc brakes; 180 mm front and rear |
| Suspension | Adjustable hydraulic front fork with lockout |
| Tires | 26 x 4.0 in. Kenda fat tires |
| Charger / time | 4.5A / approximately 4–5 hours |
| Weight | 67 lb bike + 11 lb battery; approximately 78 lb total |
| Maximum payload | 450 lb |
| Recommended rider height | Approximately 5 ft 5 in. to 6 ft 6 in. |
| Display | Color LCD with wireless/app connectivity |
| Electrical-system certification | UL 2849, manufacturer-listed |
Manufacturer geometry lists a 47.2 in. wheelbase, 77.2 in. overall length, 33.5–39.4 in. seat-height range, 19.7 in. reach, 45.7 in. handlebar height and 17.7 in. standover height. The step-through architecture lowers the effective entry point compared with a conventional high-step mountain frame.
A cadence sensor mainly knows whether the pedals are turning. The Sequoia’s torque sensor also measures rider input, so assistance can rise as you push harder and back off when you pedal lightly. For buyers comparing high-powered fat-tire bikes, this is one of the most meaningful reasons to move up to the Sequoia: it makes low-speed maneuvering, climbing and normal pedaling feel less “on/off.”
Range & speed notice: actual range and speed vary with rider weight, terrain, tire pressure, weather, assist setting and riding style. Rattan publishes different extended-range figures for optional dual-battery configurations; Watt Wheelz therefore lists the verified single-battery figure and describes the second battery only as an extender rather than promising a fixed dual-battery mileage.
Key technical details for this model are organized below for fast comparison and confident decision-making.
Performance and range can vary with rider weight, terrain, temperature, tire pressure, riding style and configuration.
We’ll move your order through fulfillment, assign the appropriate parcel or freight carrier, and provide tracking or delivery coordination as it becomes available.
Your order and selected configuration are prepared for fulfillment.
Parcel or freight service is selected based on product size and destination.
Tracking or delivery coordination is provided as soon as it becomes available.
Inspect the shipment promptly and document visible damage before discarding packaging.
Free shipping applies only to qualifying orders and destinations. Read the complete shipping policy.
This product is covered by the warranty issued by Rattan. Coverage length, eligible components, exclusions and claim requirements are governed by the manufacturer’s warranty terms.
WattWheelz can help you identify the appropriate support path and documentation for a warranty issue.
Return eligibility, condition requirements, fees and exclusions are governed by the current published refund policy. A compare-at price or displayed savings amount does not, by itself, determine return eligibility.
Included components, accessories, tools and documentation vary by manufacturer and configuration. The product description above lists the published package contents for this model.
Need help understanding what comes with your selected configuration? Our team can walk you through it.
Some electric rides require final assembly, adjustment or setup after delivery. Follow the manufacturer’s supplied instructions and safety guidance. Professional assembly may be appropriate when specified by the manufacturer or when you are not comfortable completing setup yourself.
Yes. The selected configuration is currently available to order. Shipping method and delivery coordination depend on the product and destination.
Affirm promotional messaging is shown when available, and eligible payment options are presented during checkout. Approval, rates, down payment and terms are determined by Affirm.
Free shipping applies to qualifying orders and destinations. The final shipping method and any applicable charge are shown or confirmed according to the published shipping policy.
Eligible returns are handled under the current WattWheelz refund policy, including its condition requirements and product-specific exclusions. View the refund policy.
Call (302) 414-9758 or email our team. A WattWheelz specialist can help with fit, specifications, compatibility, setup and delivery questions.
Add this product and another ride to compare speed, range, motor and price side by side.
