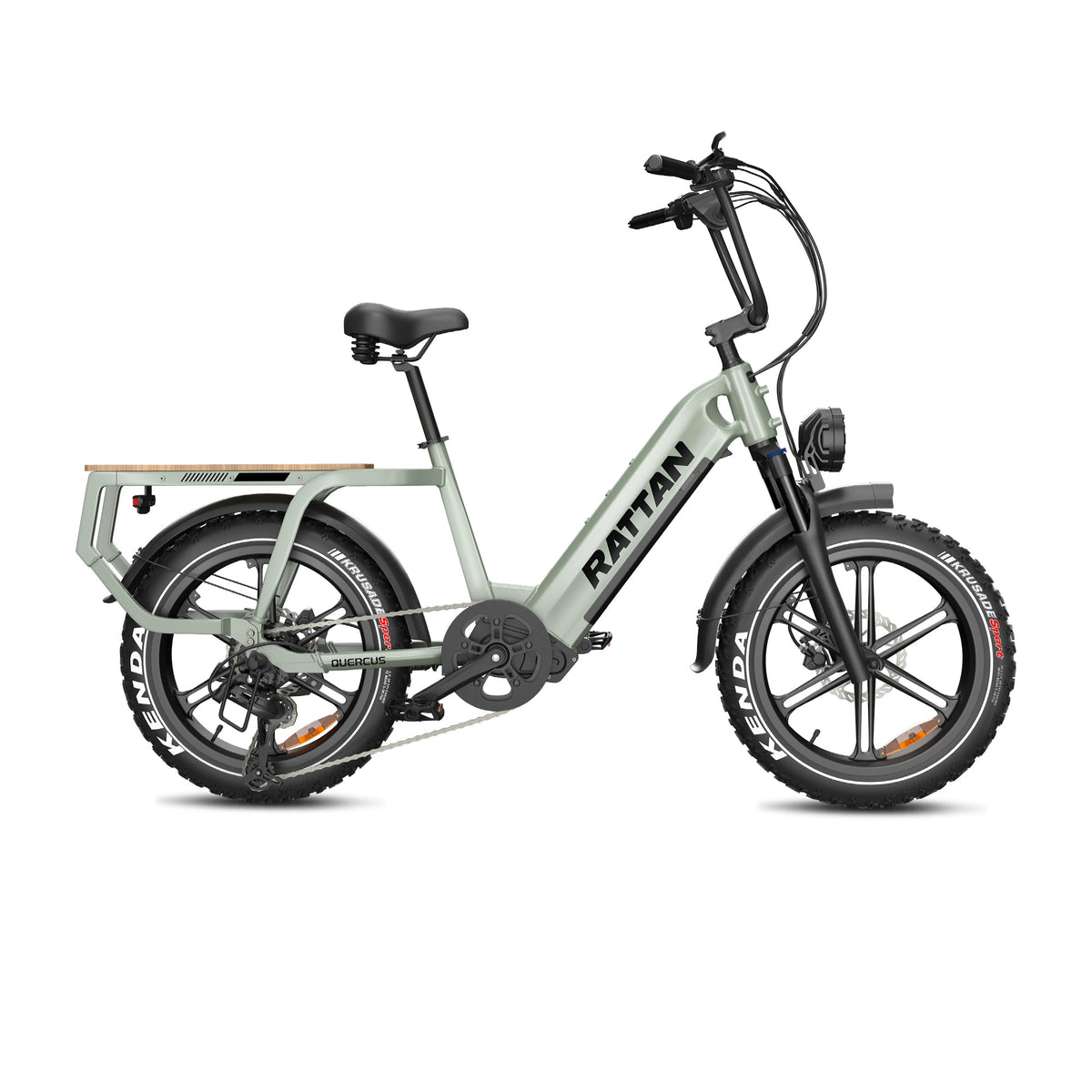

The Rattan Quercus is a compact utility e-bike that blends cargo-bike practicality with unusually strong performance. Its 20 x 4 in. platform is easier to maneuver than a full-size 26-inch fat bike, while the 750W sustained / 1500W peak motor, torque sensor and 960Wh Samsung-cell battery give it the power and range to serve as a true everyday vehicle.
The Quercus is ideal for riders who want one e-bike to cover commuting, grocery runs, neighborhood trips, cargo duty and recreation. It is especially compelling for buyers who like the utility of a cargo bike but do not want the wheelbase or bulk of a long-tail platform.
| Motor | 750W sustained Shengyi brushless rear hub; up to 1500W peak |
|---|---|
| Maximum torque | 80 Nm |
| Battery | 48V 20Ah / 960Wh removable Samsung 21700-cell lithium-ion |
| Claimed range | Up to 80 miles with the standard battery; optional second-battery configurations extend range |
| Top speed | Up to 30 mph |
| Sensor | Torque sensor |
| Ride modes / assist | 3 riding modes / 5 pedal-assist levels |
| Throttle | Thumb throttle |
| Drivetrain | Shimano 8-speed |
| Brakes | Hydraulic disc brakes; 180 mm front and rear |
| Suspension | Adjustable hydraulic front fork |
| Tires | 20 x 4.0 in. Kenda fat tires |
| Charger / time | 4.5A / approximately 4–5 hours |
| Weight | 71 lb bike + 11 lb battery; approximately 82 lb total |
| Maximum payload | 400 lb conservative fit-table rating |
| Recommended rider height | Approximately 5 ft 3 in. to 6 ft 4 in. |
| Display | Color LCD with wireless/app connectivity |
| Lighting | Integrated lighting; manufacturer lists rear brake/turn-signal functions |
| Electrical-system certification | UL 2849; battery safety listing includes UL 2271 in manufacturer materials |
Rattan lists a 44.9 in. wheelbase, 67.3 in. overall length, 32.6–40.2 in. seat-height range, 16.9 in. reach, 48 in. handlebar height and 22.8 in. standover height. The 20-inch wheels keep the center of gravity relatively low for a high-capacity utility bike.
Rattan’s primary marketing section advertises a 450 lb payload, while its published sizing/fit table lists 400 lb. Watt Wheelz uses the more conservative 400 lb figure here rather than overstating capacity. If Rattan formally revises the specification, we can update the listing accordingly.
Range & speed notice: actual range and top speed depend on payload, terrain, tire pressure, weather, assist level and rider input. A 30 mph capable e-bike can fall outside standard e-bike classifications in some jurisdictions; the rider is responsible for complying with local rules.
