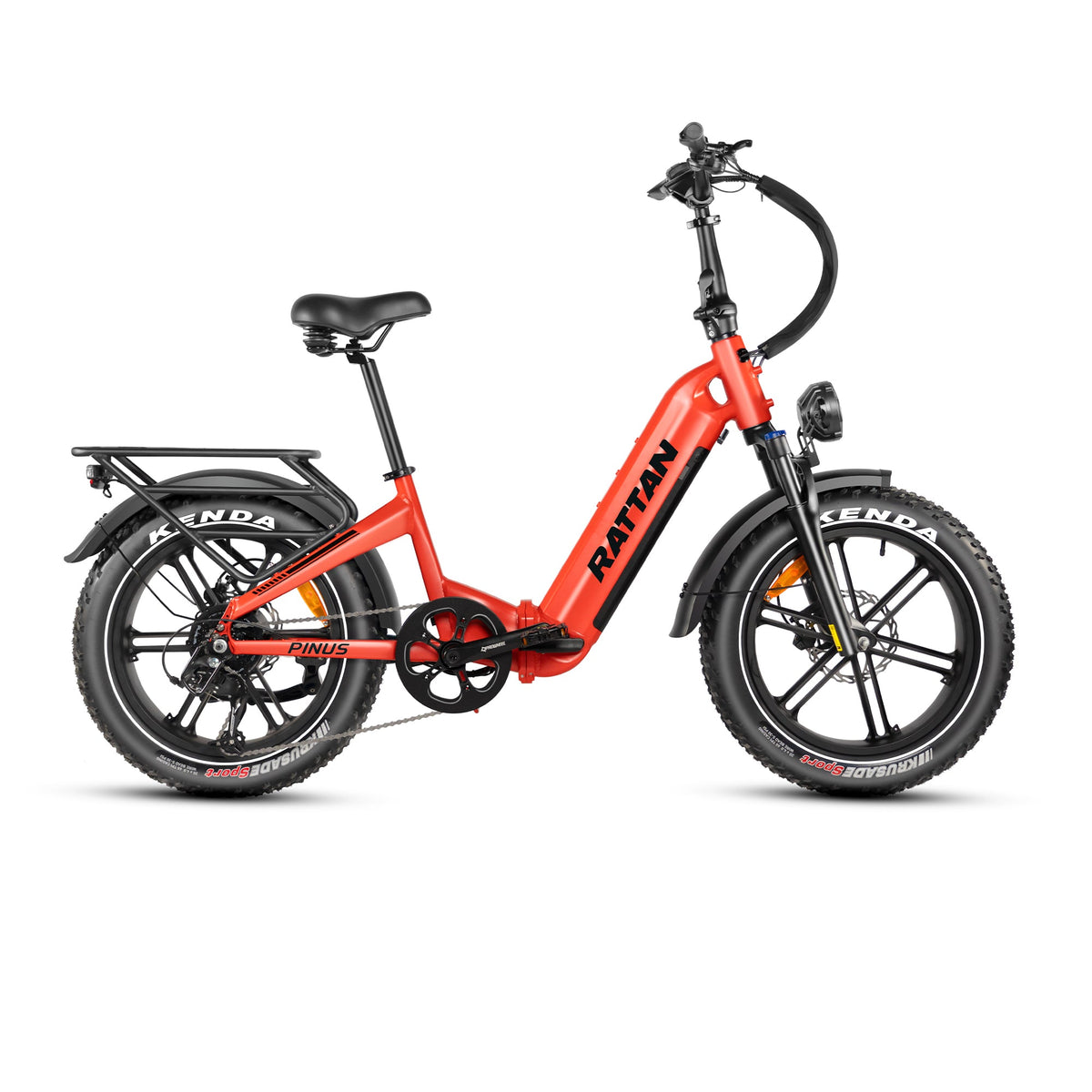

The Rattan Pinus is the premium folding model for riders who want torque-sensor refinement, a large 960Wh battery and 20 x 4 in. fat-tire capability in a step-through frame. Compared with simpler folding bikes, the Pinus adds stronger braking, a larger battery, app-connected display and more sophisticated pedal-assist control.
The Pinus is the strongest fit for riders who want a folding e-bike that still feels like a premium all-terrain machine. It makes sense for RV travel, mixed-surface recreation, commuters with limited storage and buyers who want a torque sensor but do not want a full-size 26-inch bike.
| Motor | 750W sustained brushless rear hub; up to 1500W peak |
|---|---|
| Maximum torque | 80 Nm |
| Battery | 48V 20Ah / 960Wh removable Samsung-cell lithium-ion |
| Claimed range | Up to 80 miles with the standard battery; optional second battery extends range |
| Top speed | Up to 28 mph |
| Sensor | Torque sensor |
| Ride modes / assist | 3 riding modes / 5 pedal-assist levels |
| Throttle | Thumb throttle |
| Drivetrain | Shimano 8-speed |
| Brakes | Hydraulic disc brakes; 180 mm front and rear |
| Suspension | Front suspension fork with lockout |
| Tires | 20 x 4.0 in. Kenda fat tires |
| Charger / time | 4.5A / approximately 4–5 hours |
| Weight | 70 lb bike + 11 lb battery; approximately 81 lb total |
| Maximum payload | 400 lb |
| Recommended rider height | Approximately 5 ft 3 in. to 6 ft 4 in. |
| Display | Color LCD with wireless/app connectivity |
| Electrical-system certification | UL 2849, manufacturer-listed |
Published dimensions include a 45.87 in. wheelbase, 68.5 in. overall length, 33.46–35.04 in. seat-height range, 20.47 in. reach and 15.75 in. standover height. Folded dimensions are approximately 31.1 x 35.4 x 20.9 in., giving the Pinus a real storage advantage over non-folding fat-tire bikes.
The Pinus combines a torque sensor with 5 assist levels, allowing the rider to use low assist for a more bicycle-like feel or higher assist when carrying weight or climbing. The wide tires and suspension help smooth rougher surfaces, while the hydraulic brakes add control when the bike is loaded or moving at higher speed.
Range & speed notice: published figures are manufacturer claims. Real-world performance varies with rider weight, terrain, temperature, tire pressure, assist setting and riding style. Local e-bike speed and throttle rules vary.
Key technical details for this model are organized below for fast comparison and confident decision-making.
Performance and range can vary with rider weight, terrain, temperature, tire pressure, riding style and configuration.
