Published payload capacity 397.0 lb
Explore the key specifications, fit guidance, delivery information, warranty coverage and ownership details for this model. Need help choosing a configuration? Our specialists are here to help.

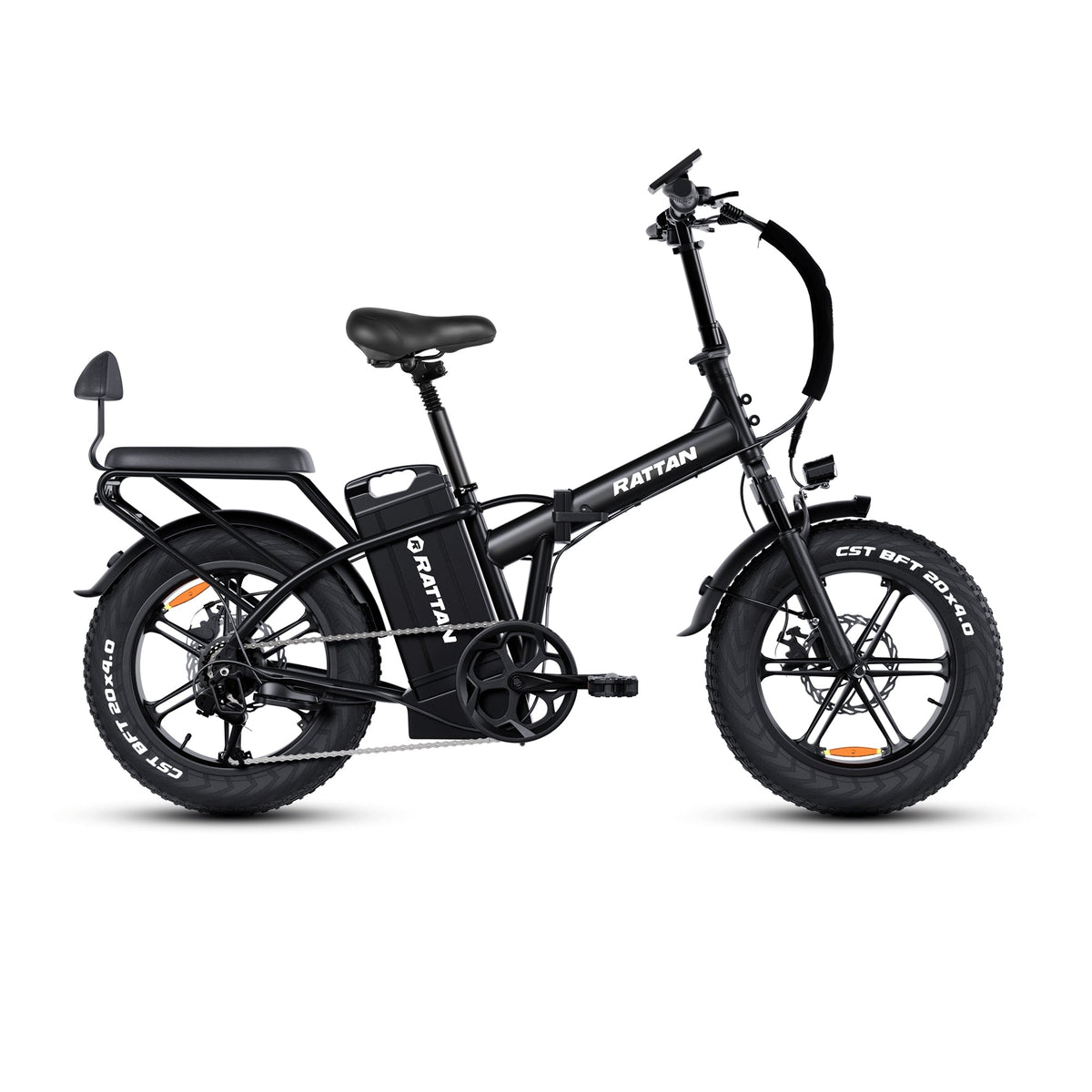

The Rattan LM Ultra is the high-step version of Rattan’s long-range folding platform, built for riders who want serious battery capacity without giving up a compact, travel-friendly frame. Its 48V 40.5Ah battery stores 1,944Wh of energy, while a 1000W sustained rear hub motor can deliver up to 1800W peak output. Rattan lists up to 120 miles of maximum assisted range, and top speed is 28 mph.
The LM Ultra makes the most sense for riders who want maximum range in a folding e-bike, but prefer a high-step frame. It is especially well suited to RV owners, long-distance commuters, delivery riders, campers and buyers who want to reduce range anxiety without moving to a full-size non-folding bike.
| Motor | 1000W sustained brushless geared rear hub; up to 1800W peak |
|---|---|
| Battery | 48V 40.5Ah removable lithium-ion; 1,944Wh |
| Claimed range | Up to 120 miles maximum; manufacturer also lists approximately 100 miles average |
| Top speed | 28 mph |
| Throttle | Half-twist grip throttle |
| Pedal assist | 5 levels |
| Drivetrain | Shimano 7-speed |
| Brakes | Dual hydraulic disc brakes; 180 mm rotors |
| Tires | 20 x 4.0 in. CST fat tires with puncture-resistant liner |
| Charger | 4A |
| Charge time | Approximately 8–9 hours |
| Bike weight | 64 lb bike + 22 lb battery; approximately 86 lb total |
| Maximum payload | 180 kg (approximately 397 lb) |
| Recommended rider height | Approximately 5 ft 3 in. to 6 ft 4 in. |
| Display | Multifunction LCD/color display |
| Lighting | Integrated front light and rear light with brake-light function |
| Electrical-system certification | UL 2849, manufacturer-listed |
Rattan lists an overall length of 69.3 in., a 45.7 in. wheelbase, a 32.7–37.4 in. seat-height range and adjustable handlebar height. Folded dimensions are approximately 38.2 x 18 x 33.5 in., making the bike easier to store in an RV, garage, apartment or larger vehicle cargo area than a conventional full-size fat-tire e-bike.
The LM Ultra combines front suspension, a suspension seatpost, fat tires and hydraulic braking to make long rides more manageable. The removable battery can be charged on or off the bike. A Shimano 7-speed drivetrain lets the rider choose a mechanical gear independently of the five pedal-assist levels, while the half-twist throttle provides on-demand motor power where permitted.
Rattan lists the battery, 4A charger, fenders, front and rear lights, bell, rear seating/backrest and footrest equipment as part of the standard bike configuration. Promotional gifts and optional accessory bundles can change and are not guaranteed unless shown in the selected Watt Wheelz configuration at checkout.
Speed setting: per Rattan, the 28 mph maximum speed is set through the display settings.
Range & speed notice: published figures are manufacturer claims under favorable conditions. Actual range, speed and hill performance vary with rider weight, payload, terrain, temperature, tire pressure, assist level and riding style. Local e-bike class, throttle and speed regulations vary by jurisdiction.
“RATTAN LM ULTRA Review: Is This the ULTIMATE Long-Distance Commuter E-Bike?” by Jelbuilder on YouTube.
Watt Wheelz note: We share real rider videos so you can see the Rattan LM Ultra in action before you buy. Questions about fit, range or setup? Email us at support@wattwheelz.com.
Key technical details for this model are organized below for fast comparison and confident decision-making.
Performance and range can vary with rider weight, terrain, temperature, tire pressure, riding style and configuration.
Published payload capacity: 397.0 lb.
