Features fully upgraded
Newly Designed Geometry
The newly designed geometry provides this mountain sport-oriented ebike with a relatively low standover height, making it suitable for riders of various heights.
Durable High-Strength Frame Material

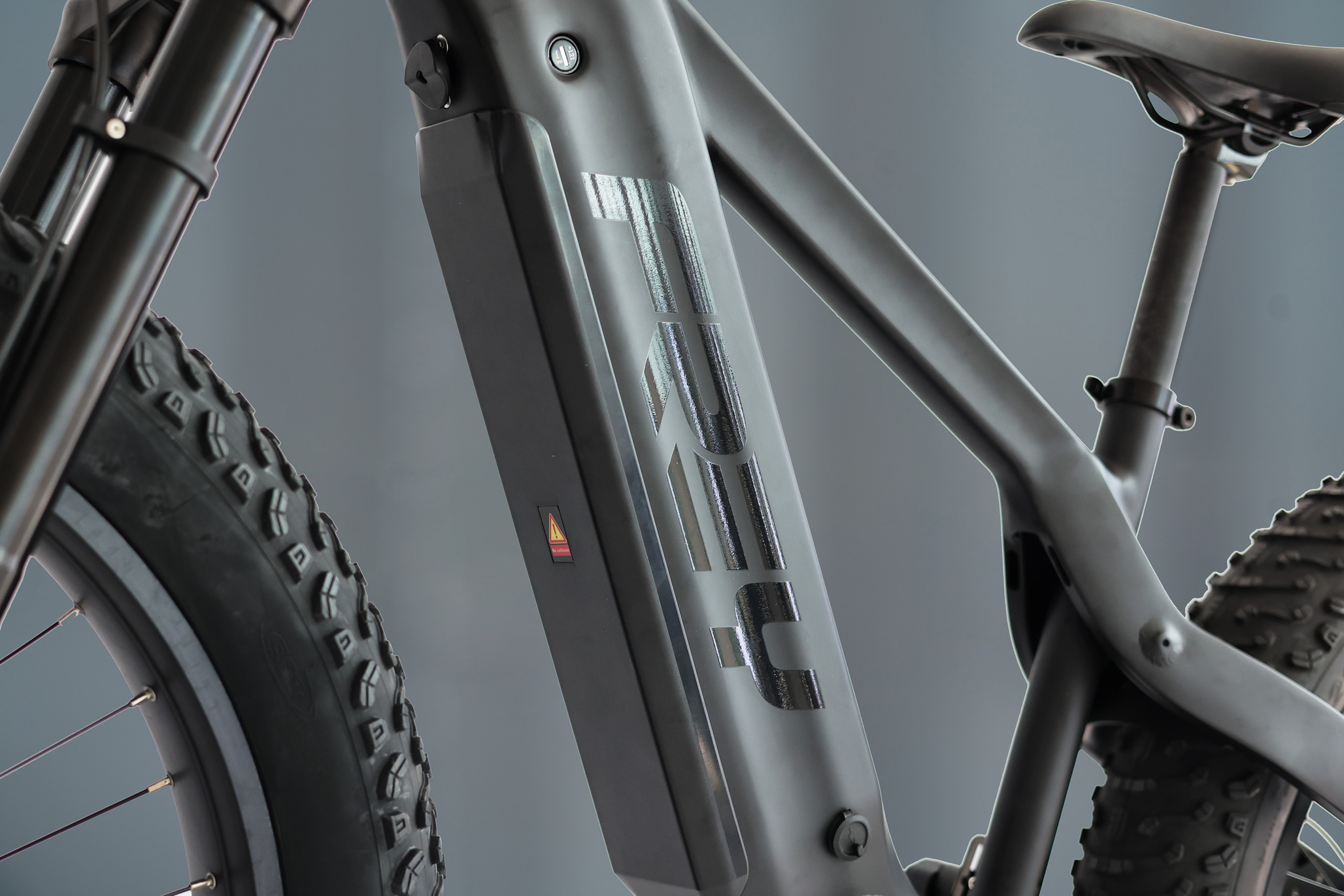

Our electric bicycles boast a high-strength, durable geometry, including a robust rear triangle, ensuring reliable performance even in challenging terrains.
High Power, Long Range for Enjoyable Riding Experience
We’ve upgraded the power system of our electric bikes, equipping them with high-power system and larger capacity batteries, providing you with longer-lasting riding enjoyment. Whether climbing steep hills or traversing complex mountain forests, our vehicles can handle them with ease, allowing you to enjoy the thrill of riding.
Versatile Customization for Personalized Riding
Electric bikes offer various customization options, including belt drive systems and internal gear hubs, for a personalized riding experience. Quiet belt drives and smooth internal gears make your ride comfortable and effortless.
Our eBike's fortified geometry and fat tires guarantee stability and traction on any terrain, ensuring a smooth and safe ride across diverse landscapes.
Specs
| System | BaFang M620 1000W system, 160Nm |
|---|---|

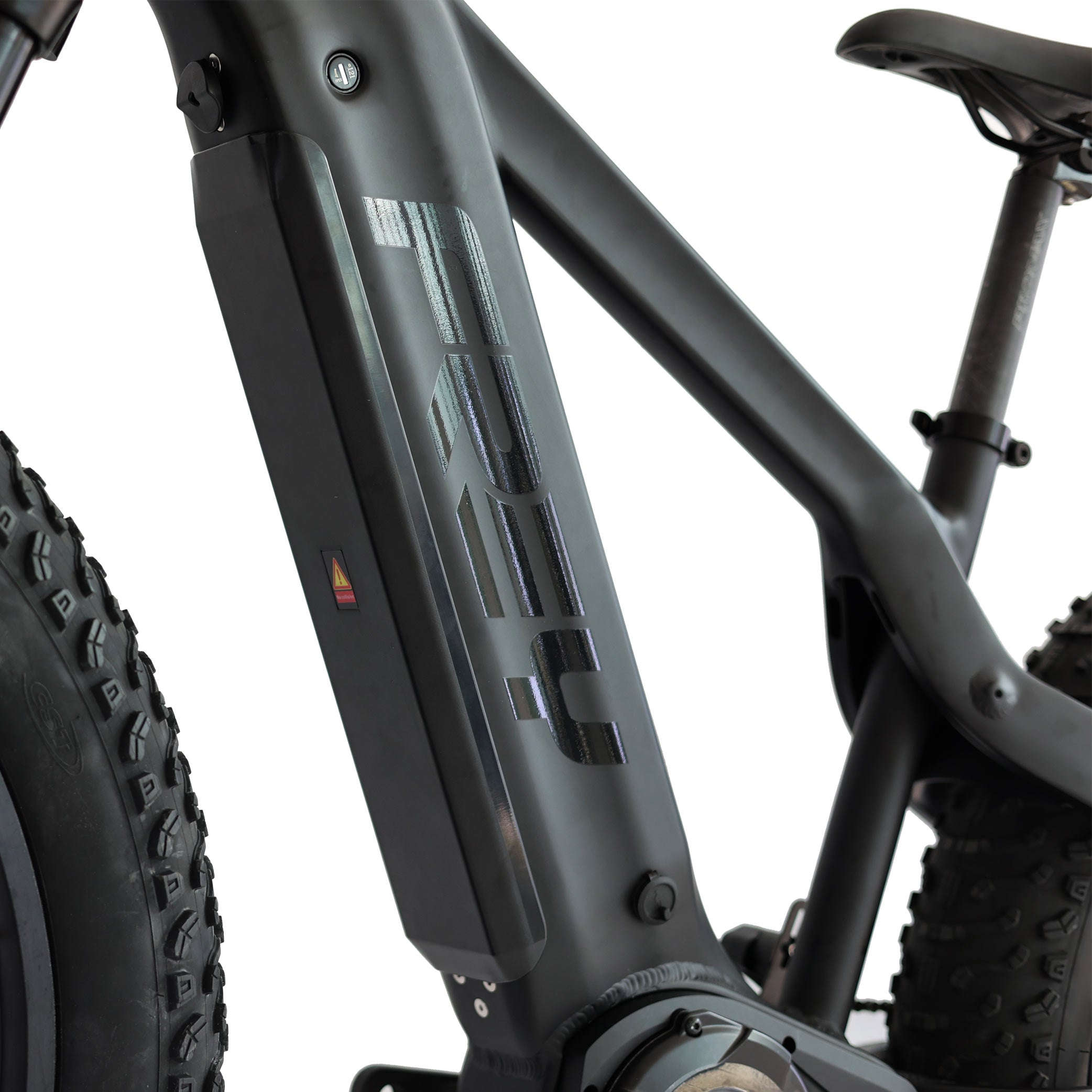

| Battery | Downtube integrated 48V25AH (1200WH)/48V30AH(1440WH) |
| Charger | Output 54.6V/5A, AC100-240V |
| Frame | FREY patented design for fat bike |
| Fork | Inverted Fat Bike Air Suspension Fork |
| Rear Shock | No |
| Stem | Alloy, 50mm length |
| Handlebar | Alloy, 25mm rise, 780mm, 31.8mm clamp |
| Wheelset | 26″ double-wall alloy rims 80mm width |

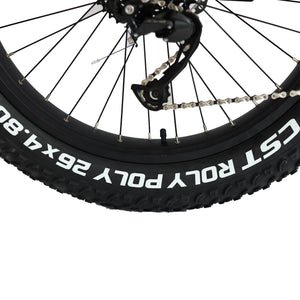

| Tires | 26*4.0-4.8″fat tires |
| Brakes | Tektro HD E730 4-piston 203/203mm |
| Drivetrain | SHIMANO ALIVIO 9S |
| Weight | 34 kg |
| Max. payload | 150 kgs |

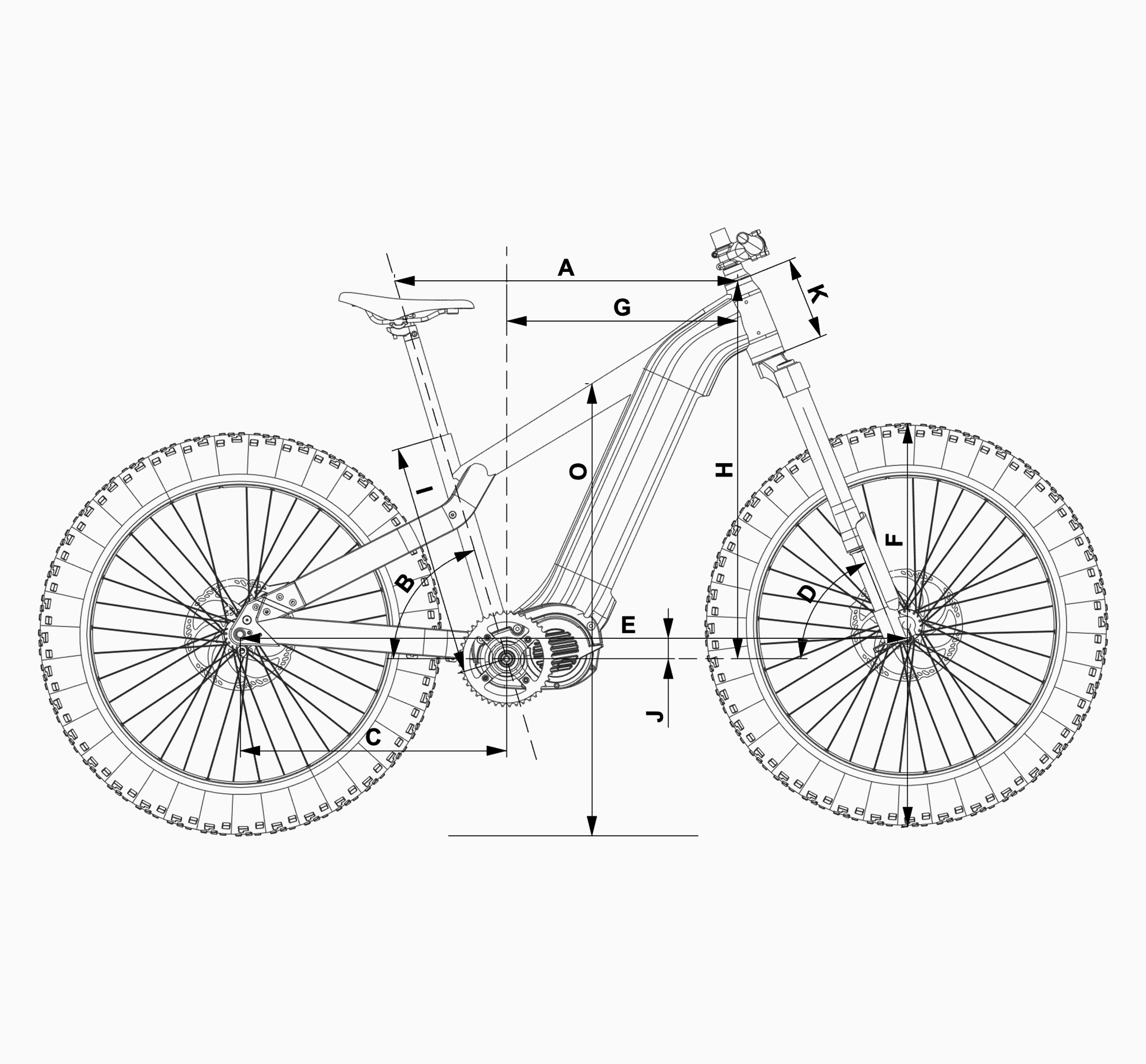

Geometry
All measurements are in millimeters unless otherwise stated.

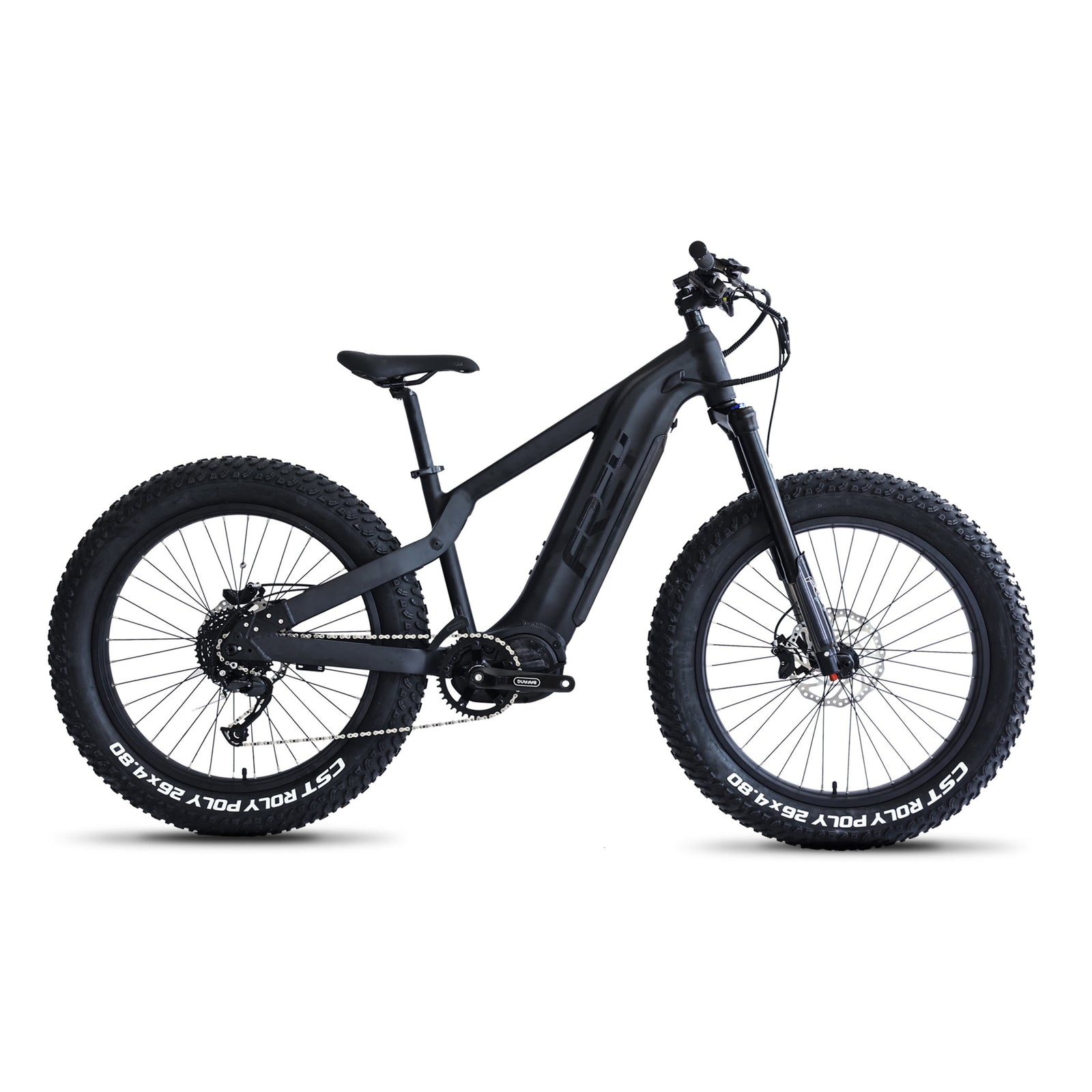

| HUNTER 2.0:Fork 26″*140/26″ | |||
|---|---|---|---|
| A TOP TUBE HORIZONTAL | 620.8 | 620.8 | |
| B SEAT TUBE ANGLE | 73.5° | 73.5° | |
| C CHAINSTAYS | 484.7 | 484.7 | |
| D HEAD TUBE ANGLE | 67.5° | 67.5° | |
| E WHEELBASE | 1212.9 | 1212.9 | |
| F WHEEL SIZE | 768±6 | 768±6 | |
| G REACH | 418.2 | 418.2 | |
| H STACK | 684.1 | 684.1 | |
| I SEAT TUBE | 420 | 420 | |
| J BB DROP | 44.4 | 44.4 | |
| K HEAD TUBE LENGTH | 150 | 150 | |
| O SPAN HEIGHT(Inseam )819 | 819 | 819 |
