All mountain ebike Geometry:
Full suspension ebike wiith front 160mm rear 150mm long frame travel, meet for all mountain all terrain biking needs with strong and durable frame that suitable for climbing and downhill ebike.
Brand: Frey bikeElectric Bikes
AM1000 V6
SKU
$5,180.00
Pay over time with Affirm
See available payment options at checkout. Eligibility and terms are determined by Affirm.
In StockAvailable to order now.
LABOR DAY RIDE EVENT Limited-Time Offers Available Shop Labor Day Deals
Limited-time ride offers through September 7
Price Match Protection · Free qualifying U.S. shipping · Financing available
Price Match Protection
Ends September 7
--Days
--Hrs
--Min
--Sec
Price Match Protection
Found a lower price elsewhere?
Request a price match
Don't leave. Send us the competing advertised price and we'll review it before you order.
Expert purchase support
Expert guidance before, during, and after your purchase
Our team specializes in premium electric mobility and can help you compare models, understand the details, and choose the right ride with confidence.
Shipping, financing, warranty & support View details
Affirm financing availableSee eligible payment options at checkout. Approval and terms are determined by Affirm.
Free shipping on qualifying ordersDelivery details and tracking are provided as your order moves through fulfillment.
Manufacturer-backed warrantyCoverage is provided under the manufacturer’s published warranty terms.
Authorized dealer supportGenuine products, specialist guidance and manufacturer-backed purchase support.
Product information
Built to help you choose with confidence
Explore the key specifications, fit guidance, delivery information, warranty coverage and ownership details for this model. Need help choosing a configuration? Our specialists are here to help.

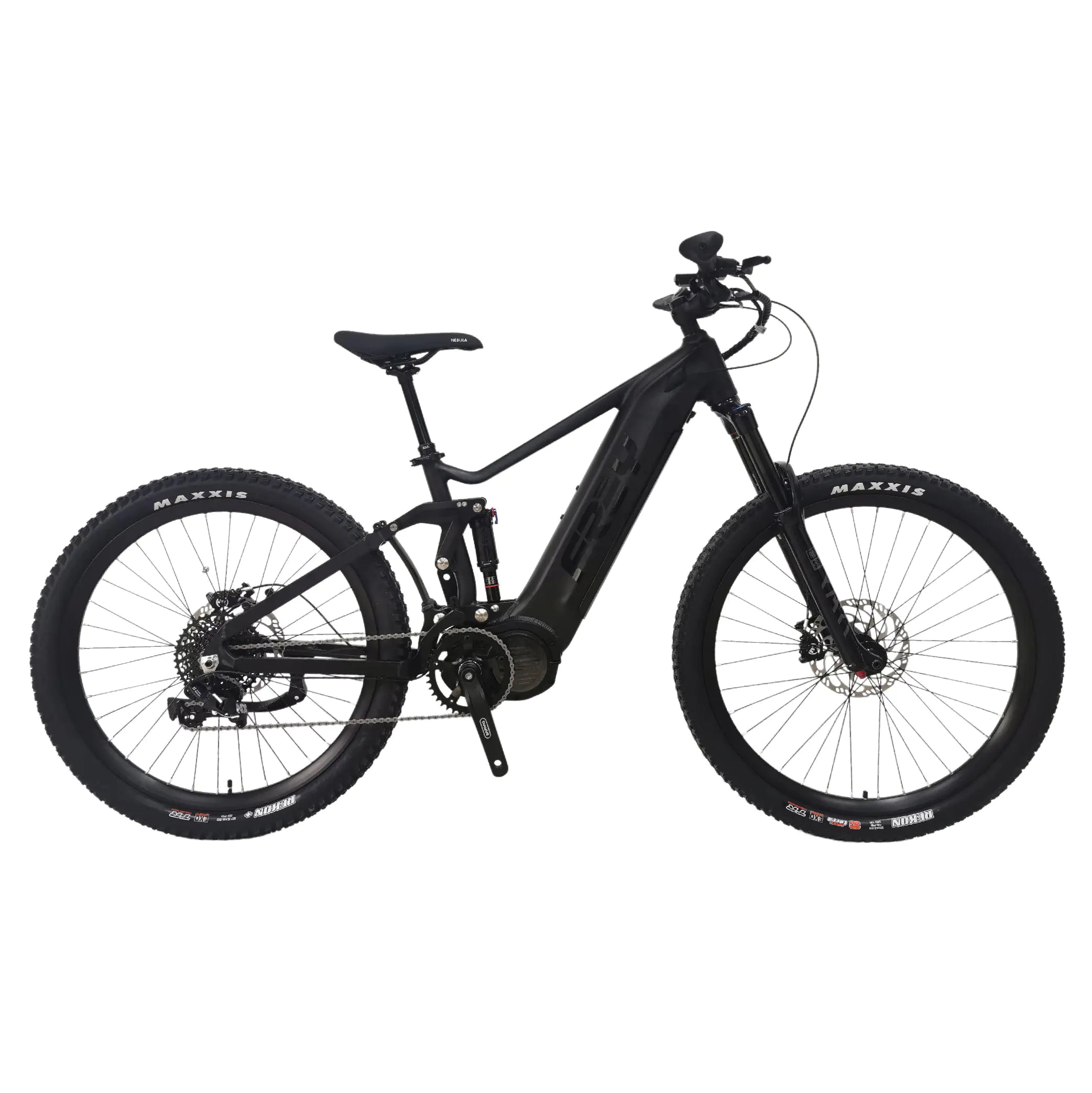

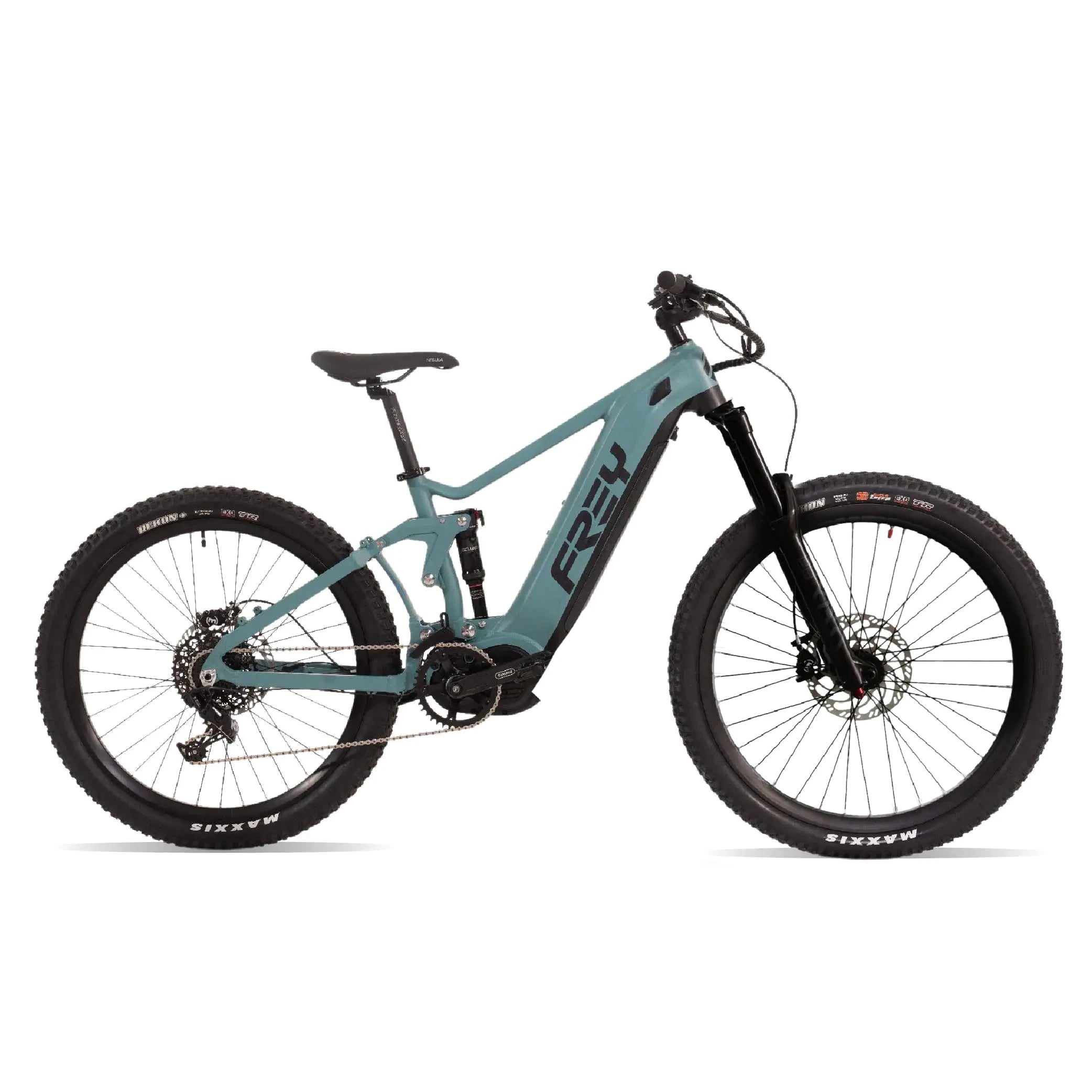

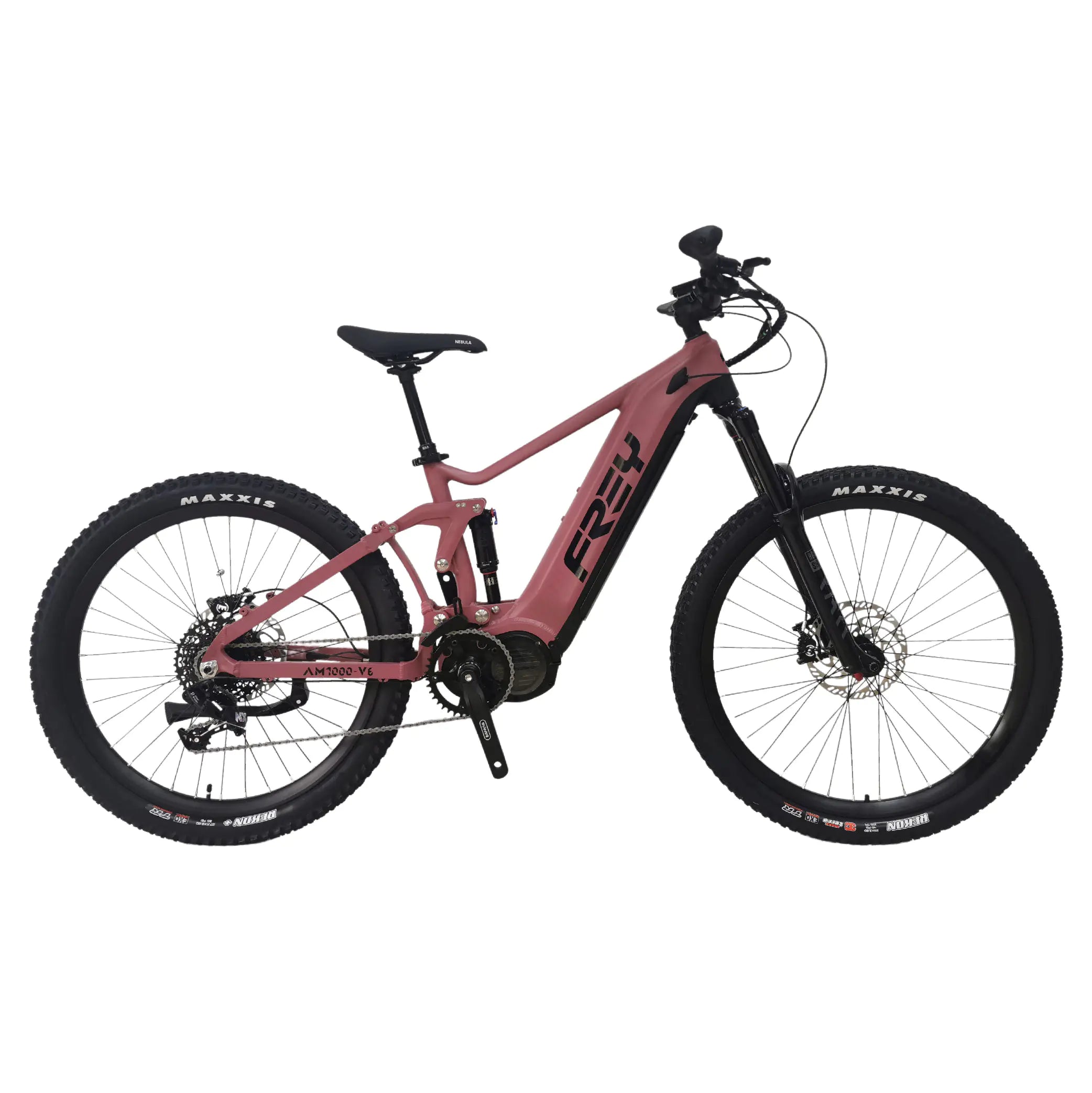

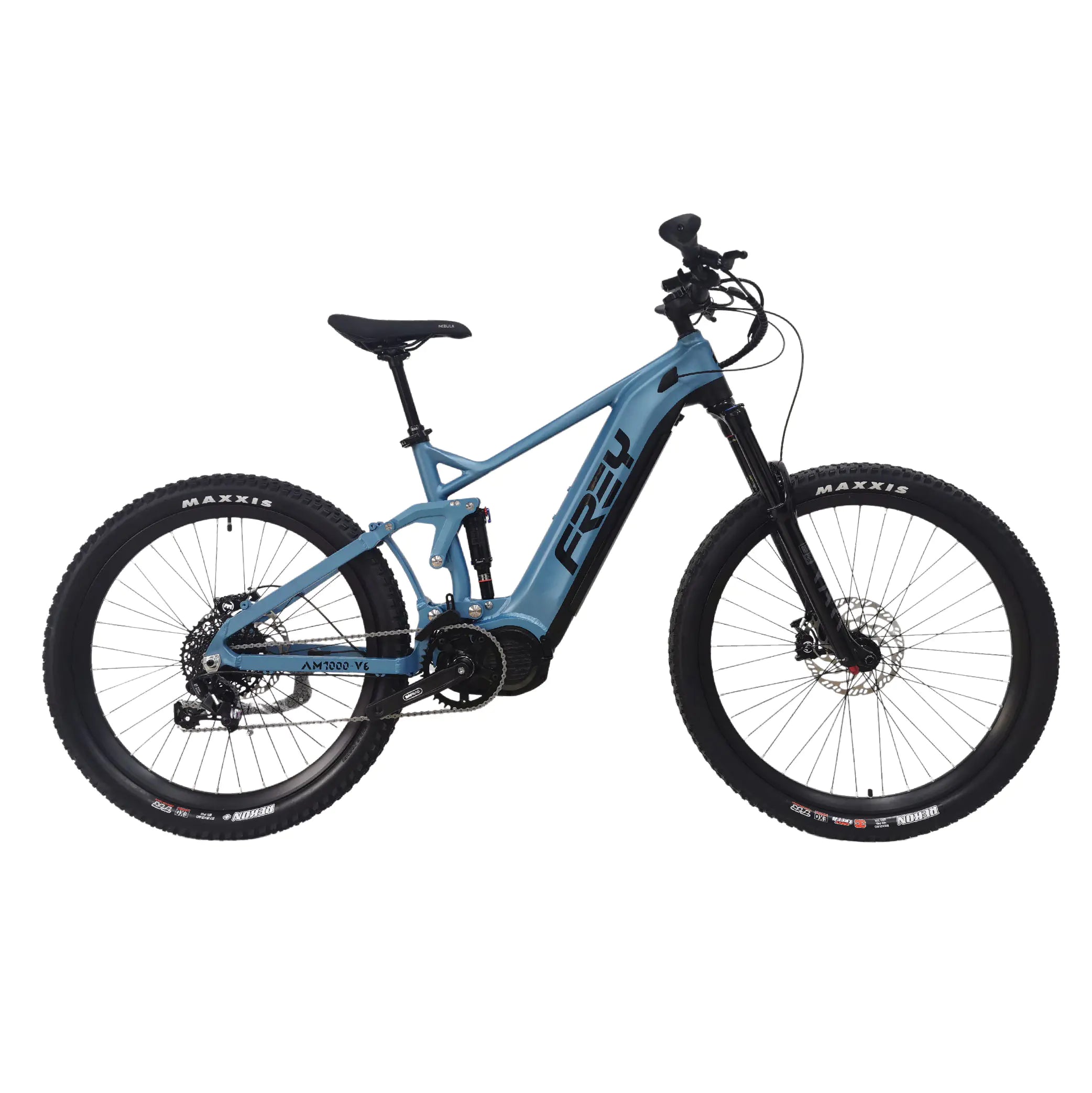

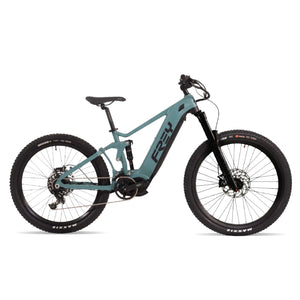

Frey AM1000 V6 is built as a high-performance electric dirt bike that excels in agility and maneuverability. Powered by the M620 system system and equipped with a 1008Wh battery, this e-mountain bike delivers extended range and strong, responsive torque for tackling varied terrain. Its suspension is engineered for all-terrain capability, featuring a 160mm front travel fork and a 205mm rear travel shock to provide a full-suspension, smooth ride from rocky trails to technical climbs. The AM1000 V6 combines robust construction, advanced driveline, and modern geometry to offer confident handling, superior traction, and a comfortable ride on any trail.
Features
MAX 35 mph
top speed
1500w
Bafang system M620
70+ miles
Range Per Charge
All terrain
Professional Frame

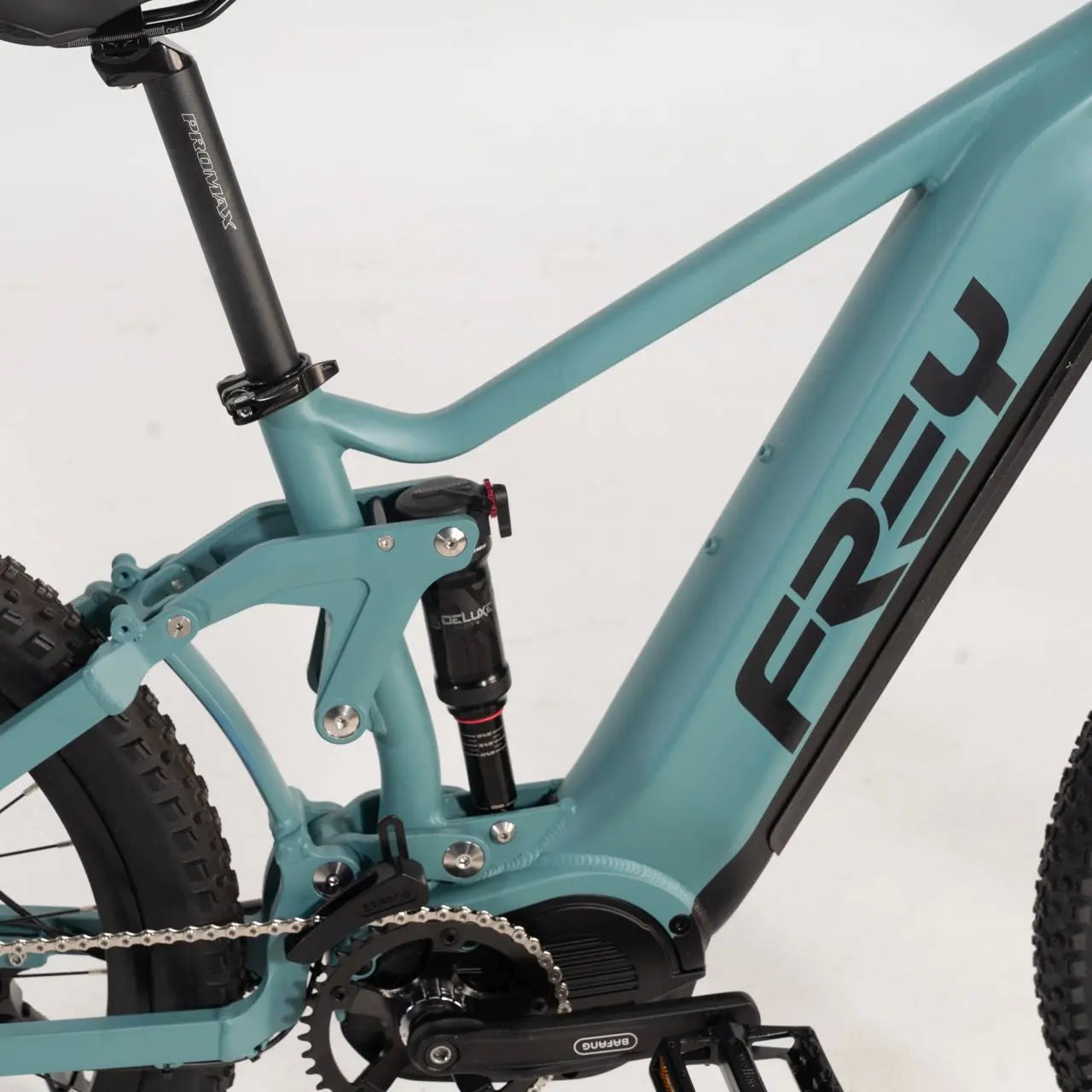

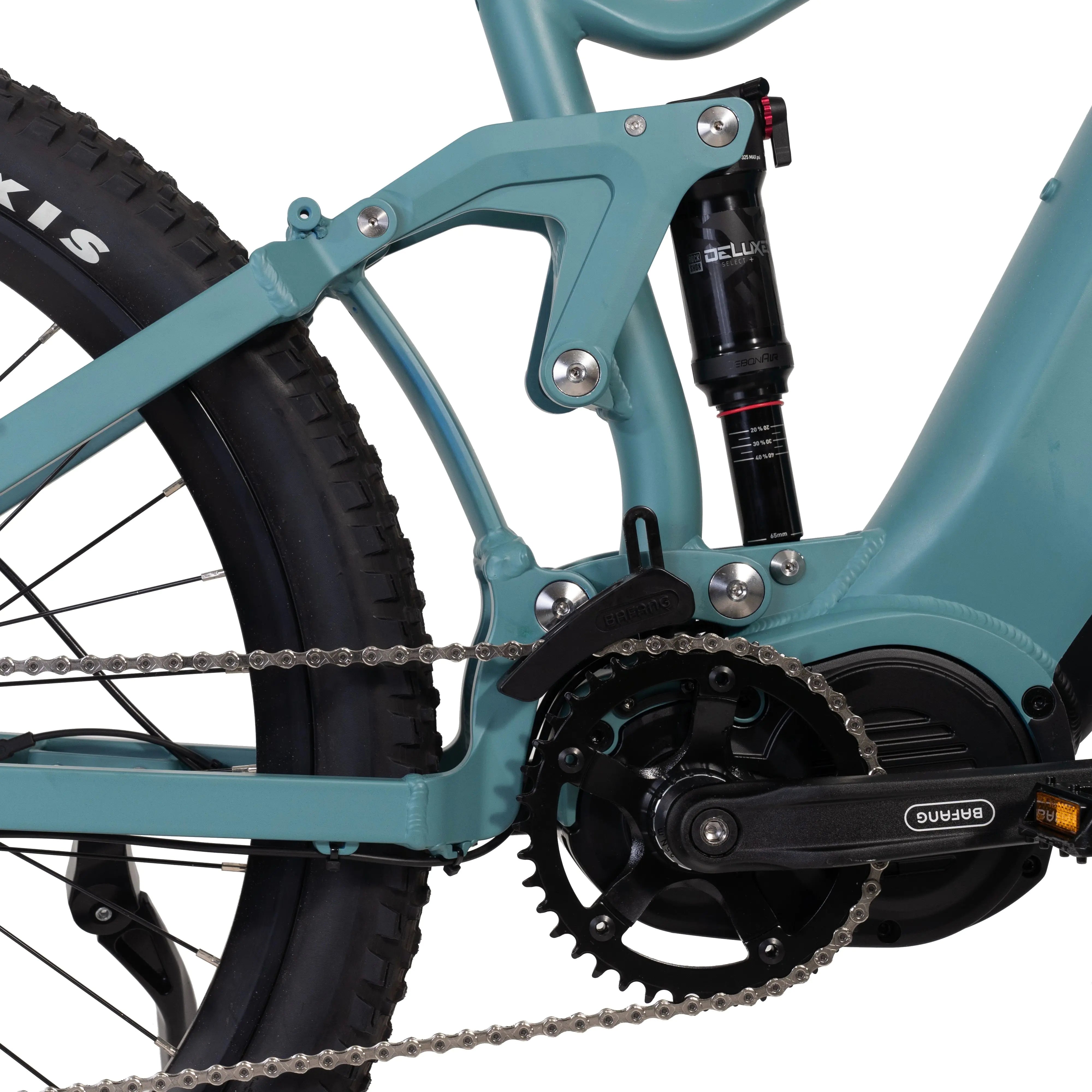

Ultra Bafang M620 G510:
Rated 1000w peak power 1500w mid-drive system delivers max160Nm torque, easy to tackle steep climbs while off-road biking, it’s really a powerful e mountain bike.
Power Function:
1. Pure electric by throttle
2. ECO/SPORT pedal assist
3. 6km/h walk mode

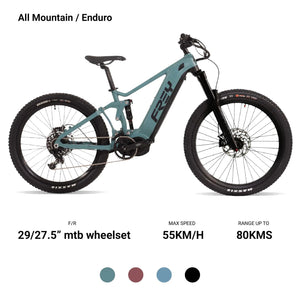

29/27.5” Wheelset options:
F/R: 29/27.5” with 29”*160mm fork or F/R: 27.5/27.5” with 27.5*180mm fork.
You can custom base on your own preference on wheel size and fork travel for the bike.
Specs
| System | BaFang M620 1000W system,160Nm |
|---|---|
| Battery | Downtube integrated 48V25AH(1200WH)/48V30AH(1440) |
| Charger | Output 54.6V/5A, AC100-240V |
| Frame | 6061#alloy, 29/27.5 Trail Geometry, full bearings,160mm travel |

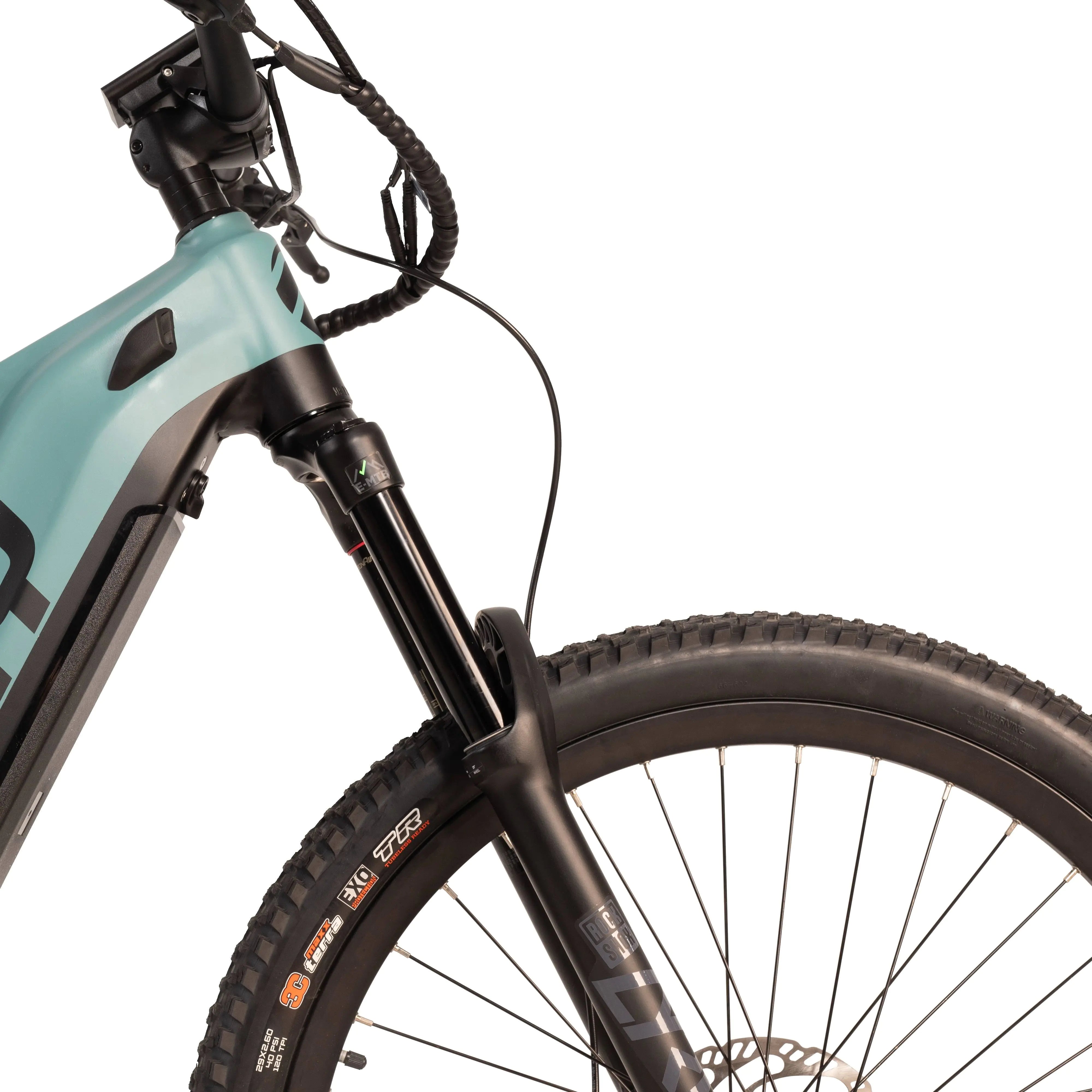

| Fork | Rockshox 29″YARI RL Boost 110*15mm,160mm |
| Rear Shock | Rockshox Deluxe 205*65mm |
| Stem | Alloy,50mm length |

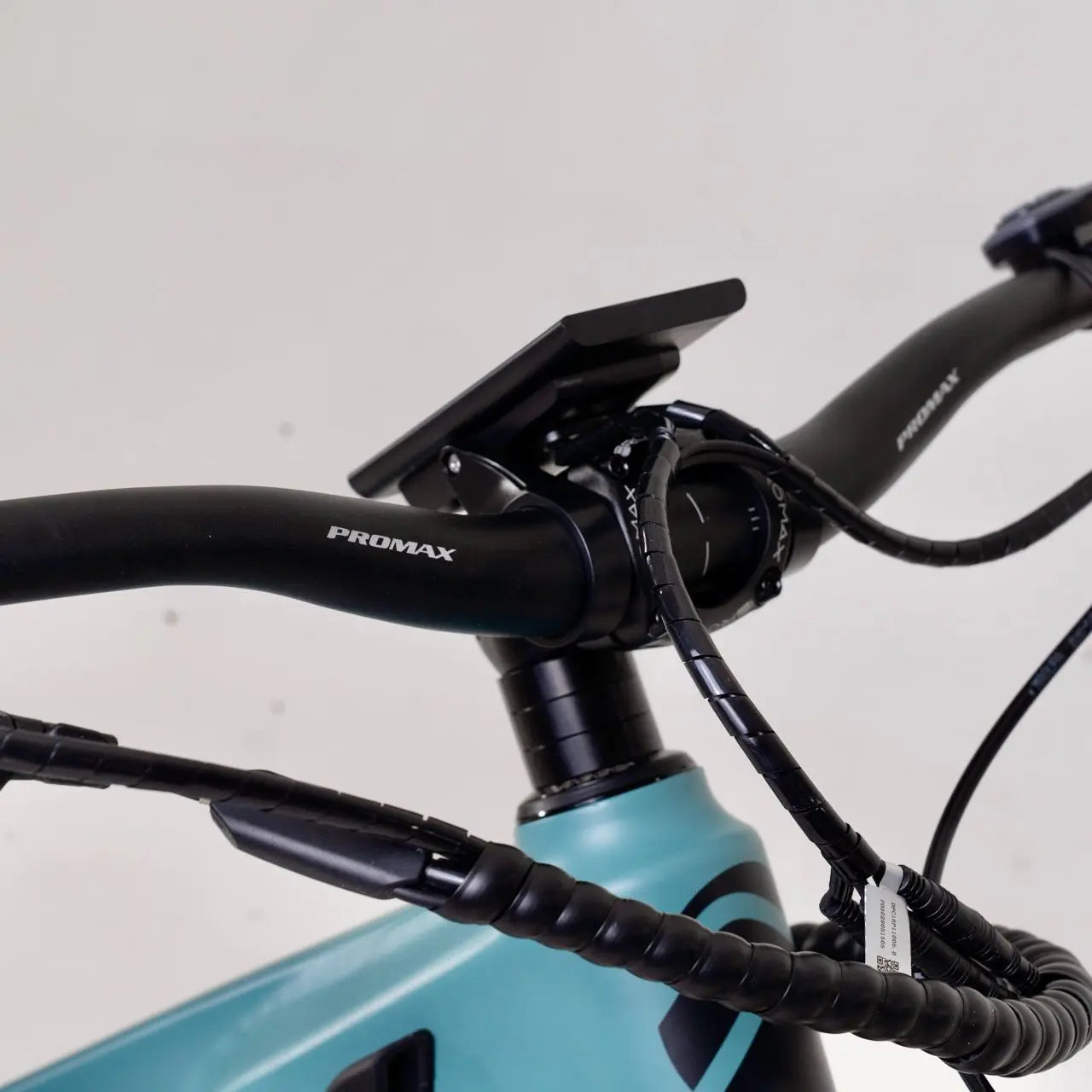

| Handlebar | Alloy, 25mm rise, 780mm, 31.8mm clamp |
| Wheelset | 29/27.5″ double-wall alloy rims |
| Tires | Maxxis 29*2.6/27.5*2.8″ Rekon+ |

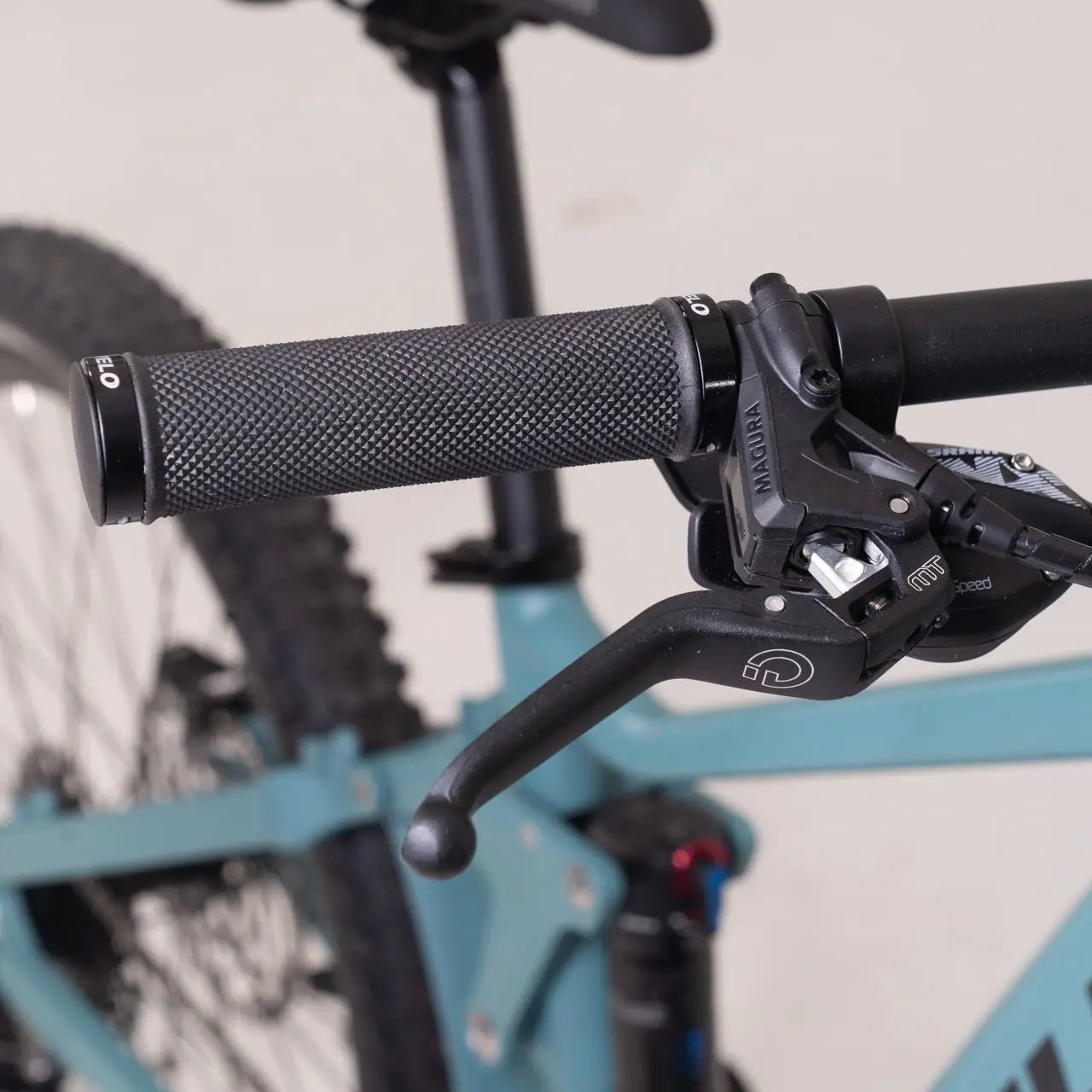

| Brakes | Magura MT5e 4-piston 203/203mm |
| Drivetrain | SRAM NX 11S set |
| Weight | 33kgs |
| Max. payload | 120kgs |
| Size | M, L, XL |
Geometry
All measurements are in millimeters unless otherwise stated.
| AM1000 V6 : Fork 29″*160 | M | L | XL | |
|---|---|---|---|---|
| A TOP TUBE HORIZONTAL | 593.8 | 612 | 620.7 | |
| B SEAT TUBE ANGLE | 75.5° | 75.5° | 75.5° | |
| C CHAINSTAYS | 467 | 467 | 467 | |
| D HEAD TUBE ANGLE | 65.1° | 65.1° | 65.1° | |
| E WHEELBASE | 1230 | 1250 | 1260 | |
| F WHEEL SIZE F/R | 29/27.5 | 29/27.5 | 29/27.5 | |
| G REACH | 427.7 | 442.6 | 448.4 | |
| H STACK | 646.6 | 655.7 | 664.8 | |
| I SEAT TUBE | 420 | 460 | 510 | |
| J BB DROP | 21 | 21 | 21 | |
| K HEAD TUBE LENGTH | 135 | 140 | 155 |
Sizing
| Size | Rider Height | Rider Height |
|---|---|---|
| M |
165-175cm |
5’4″ – 5’9″ |
| L |
170-185cm |
5’7″ – 6’1″ |
| XL |
180-195cm |
5’11″ – 6’5″ |
Detailed specifications
Key technical details for this model are organized below for fast comparison and confident decision-making.
Performance
Battery & range
Fit & capacity
Components
Catalog details
- Brand
- Frey bike
- Category
- Electric Bikes
Performance and range can vary with rider weight, terrain, temperature, tire pressure, riding style and configuration.
